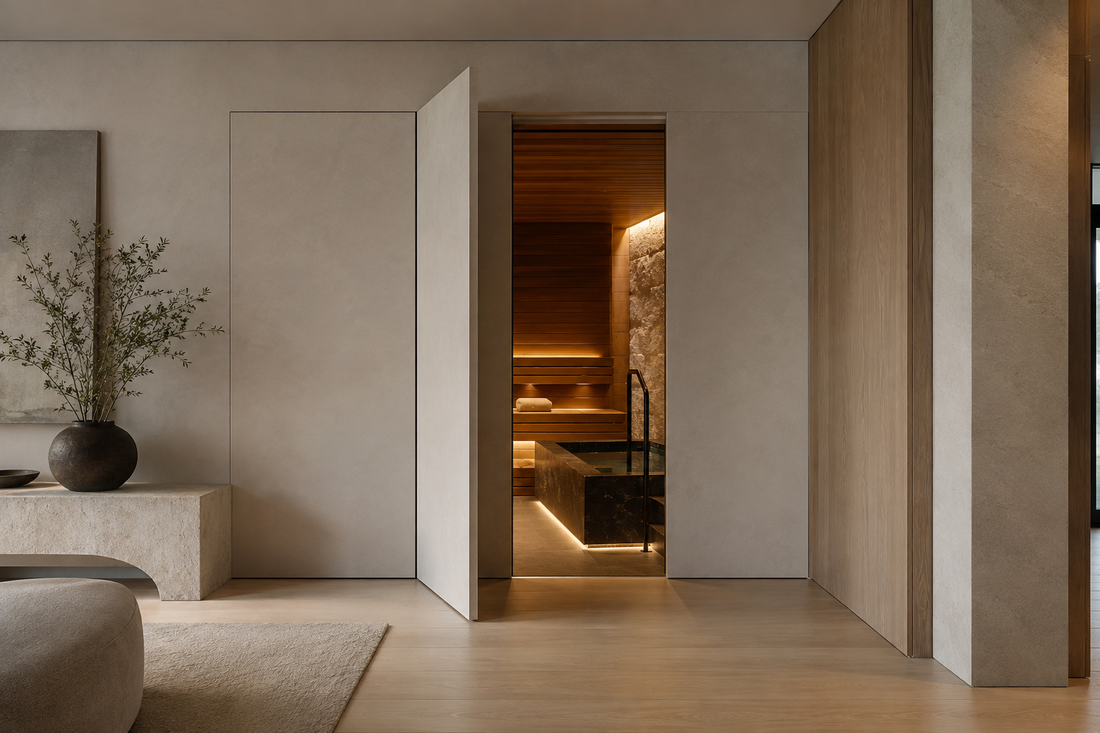

Hidden Wellness Retreat

Hidden Room Design: The Architecture of Concealed Spaces in Luxury Homes

A hidden room is not a magic trick. It is a structural proposition, a millwork problem, and a test of how well an architect, a framer, and a finish carpenter can coordinate before the first sheet of drywall goes up. Hidden room design, practiced seriously, demands the same discipline as any other architectural element in a luxury home: a clear program, precise tolerances, and an honest reckoning with the building code. The door that vanishes into a wall of paneling does not happen by accident. It happens because someone planned for it when the floor deck was still exposed and the wall cavities were still open.

Table of Contents

This article examines what that planning requires. It covers the three real reasons clients commission concealed spaces, the hardware and structural mechanics that make them function, the coordination sequence that prevents failure, and the code realities that homeowners rarely anticipate. The perspective is architectural, not theatrical. The goal is to explain what separates a convincing concealment from an obvious one, and why the mechanics, not the mystery, carry the weight.

Why Clients Commission Hidden Rooms: Three Serious Motivations

The decision to build a hidden room rarely begins with the door. It begins with a problem the client cannot solve with conventional architecture. Understanding that problem is the first step in designing a space that serves it.

Security and asset protection form the most direct motivation. A hidden room functions as a discreet, unadvertised storage volume for valuables, documents, and collections. It does not announce itself to staff, guests, or service providers. Unlike a visible safe or a locked closet, it offers no visual cue that something worth protecting lies behind the wall. The protection is not in the lock but in the absence of a target. For clients with significant collections of jewelry, watches, rare books, or legal documents, this is not paranoia. It is a rational response to the reality that a home is a porous environment, occupied by multiple people with legitimate access who do not all need to know what exists behind the study paneling.

Privacy and retreat constitute the second motivation. For clients whose lives are subject to constant visibility, a concealed study, reading room, or private gallery offers something a conventional room cannot: a psychological boundary. The knowledge that the space exists only for those who need to know changes how it feels to occupy it. A door that disappears into a wall of bookshelves does not just conceal a room. It conceals the act of retreat itself. No one knows you have gone there because no one knows there is a there to go to.

Collection display and curation represent the third motivation. A hidden room allows a collector to control access and context. Art, wine, watches, or rare books can be experienced as a curated reveal rather than a permanent display. The room becomes a destination, not a gallery. The experience of entering it, of having it disclosed, is part of the collection's meaning. This is not about hiding things away. It is about choosing when and how they are seen.

The Mechanics That Matter: Hardware and Structural Fundamentals

The door is the discipline. Everything else follows from it. Understanding the mechanical options, and their structural implications, is where hidden room design moves from concept to construction.

Pivot and Concealed Hinge Systems

Pivot hinges distribute weight differently than standard butt hinges. A pivot system transfers the door's load to the floor and ceiling through a single vertical axis, allowing panels weighing several hundred pounds to swing smoothly with minimal deflection. This makes pivot hardware the default choice for heavy doors: full-height bookcase units, stone-clad panels, or doors integrated into thick millwork assemblies.

Concealed hinges offer a different solution. Mortised into the door edge and jamb, they leave no visible hardware when the door is closed. The reveal becomes the only visual cue that a door exists at all. This demands a level of precision that standard door installation does not. The hinge mortise must be cut to the manufacturer's specification, the jamb must be perfectly plumb, and the door leaf must be hung with no margin for adjustment after the fact.

The choice between pivot and concealed hinge depends on three factors: door weight, swing arc, and whether the door is flush with the surrounding wall or set within millwork. A pivot door requires clearance at the floor and ceiling for the pivot points. A concealed hinge door requires a jamb deep enough to accept the hardware. Neither is inherently superior. Each imposes constraints that must be designed around from the beginning.

Bookcase and Panel Door Construction

A bookcase door is not a bookshelf attached to a door. It is a structural panel engineered to carry the weight of shelving, books, and the door leaf itself. The frame must be reinforced to resist racking. The hinges must be sized for the total loaded weight, not the empty door weight. The shelving must be integrated into the door's structure so that it does not sag independently of the leaf.

Wall panels and wainscoting can serve as doors when the panel is built as a separate leaf with reveals held to tolerances of 1/16 inch or less. This requires the millworker to fabricate the door leaf and the surrounding paneling as a single coordinated system. The panel that swings must match the panels that do not in every dimension: width, depth, profile, and finish.

The integration of the door into surrounding millwork determines success. Crown molding, baseboards, and panel spacing must continue across the door leaf without interruption. A baseboard that stops at the door edge and resumes on the other side announces the door as clearly as a handle would. The molding must be cut so that the door leaf carries its own section, aligned perfectly with the fixed sections on either side.

Release Mechanisms: Magnetic, RFID, and Mechanical

Magnetic catches with hidden release points offer silent, low-maintenance operation. The release is typically a specific book on a shelf, a subtle indent in a panel, or a floor trigger concealed under a rug or threshold. No visible handle. No keyhole. Nothing to grip.

RFID and electronic releases integrate with home automation systems. A fob, a phone, or a biometric reader triggers a solenoid that releases the latch. The door opens with a push. These systems allow proximity-based opening and can be tied into broader security and access control networks. They also require power, a control module, and a backup mechanical release. If the power fails, the door must still open from the inside.

Mechanical releases remain the most reliable and code-compliant option. A hidden bolt, a sliding latch behind a decorative element, or a spring-loaded catch operated by pressure on a specific point. No dependency on power. No dependency on connectivity. No failure mode that traps an occupant. For rooms that must function as habitable spaces under the building code, the mechanical release is often the only option that satisfies egress requirements without supplemental hardware.

Load-Bearing Limits and Structural Reality

Every hidden door is a structural element. The wall opening must be framed with a header and king studs just like any other doorway, even if no visible casing announces it. The header carries the load from above. The king studs transfer that load to the foundation. The rough opening must be sized to accommodate the door leaf, the hinge hardware, and the required clearances.

Flush doors in finished walls require the wall assembly to accommodate the door leaf's swing and the hinge hardware without compromising the wall's structural integrity. This means the stud layout must account for the hinge pocket, the strike side, and any blocking required for the release mechanism. A wall framed on 16-inch centers may need to be reframed on 12-inch centers at the door location to provide adequate support.

Floor and ceiling pockets for pivot hardware must be planned during framing. The pivot point at the floor requires a recessed plate set into the subfloor. The pivot point at the ceiling requires blocking between joists or a structural bracket. Retrofitting pivot hardware into an existing finished wall is significantly more expensive and often impossible without opening the assembly. The time to decide on pivot hardware is before the concrete is poured or the joists are sheathed.

Why the Door Is Easy and the Reveal Is Hard

The door leaf, the hinge, the release: these are solved problems. Hardware manufacturers offer engineered solutions for nearly any configuration of weight, swing, and activation. The door itself is not where hidden room design succeeds or fails.

The reveal is the line where the door meets the surrounding wall or millwork. If that line is visible, inconsistent, or shadowed, the concealment fails regardless of how sophisticated the hardware is. A guest does not need to understand pivot hinges to notice a gap that does not belong.

Achieving a convincing reveal requires tolerances of 1/16 inch or better. This means the door must be fabricated and installed as part of the millwork package, not as a separate door unit ordered from a different supplier and installed by a different crew. The door leaf and the surrounding panels must come from the same shop, cut on the same equipment, finished in the same batch. Any variation in material, fabrication method, or finishing process will read as a seam.

Lighting is the enemy of concealment. A reveal that disappears under ambient light can become obvious under directional or accent lighting. A downlight aimed at the wall will cast a shadow into any gap wider than a few thousandths of an inch. A wall washer will highlight variations in surface plane that are invisible under diffuse light. The lighting design must be considered as part of the concealment strategy. The door must be tested under the actual lighting conditions it will live with, not under the temporary job-site lights.

Paint and finish continuity matters over time. The door must be finished in the same material, color, and sheen as the surrounding surface. More importantly, it must be possible to touch up that finish over years of use without creating a visible patch. A door that is handled regularly will show wear. If the finish cannot be renewed seamlessly, the concealment degrades with every opening.

Coordinating Framing and Millwork Early: Not Retrofitting

The single most common failure in hidden room projects is treating the concealed door as an afterthought. A client decides they want a hidden room after the walls are framed. The architect sketches a bookcase unit to fit an existing opening. The millworker is asked to build a door that matches millwork installed six months earlier by a different shop. The result is a door that looks like a door.

The design process must begin with the door. The architect, millworker, and framer need to know the door's dimensions, swing, hardware requirements, and reveal tolerance before the wall is framed. The rough opening is not a standard door opening. It is a custom dimension derived from the door leaf, the hinge type, the required clearances, and the reveal specification. The framer cannot guess at these numbers.

The millwork package should include the door leaf, the surrounding paneling or shelving, and the jamb assembly as a single coordinated system. This is not three separate scope items. It is one scope, executed by one shop, with one set of shop drawings that shows every joint, every reveal, and every transition. The millworker who builds the door must also build the wall it disappears into.

Electrical and low-voltage rough-ins must be planned during framing. An RFID reader requires a junction box. A magnetic release may require low-voltage wiring to a control module. A concealed light switch inside the room needs a conduit path. These elements must be placed before drywall. Cutting them in after the fact means patching, and patching means the concealment is compromised before the door is even hung.

The flooring material must be coordinated with the door swing. A door that swings over carpet needs clearance for the carpet pile. A door that swings over tile or wood needs a threshold detail that does not create a visible gap when the door is closed. The finished floor elevation must be established before the door is fabricated so the undercut is correct. A door that scrapes the floor or leaves a half-inch gap has failed.

Acoustic and Thermal Isolation: The Invisible Performance Criteria

A hidden room that sounds hollow or transmits sound from adjacent spaces fails at its primary purpose. The occupant who retreats to a concealed study for quiet does not want to hear the television in the next room. The collector who stores rare books in a hidden library does not want the HVAC rumble penetrating the walls.

Acoustic isolation is a performance criterion, not a luxury upgrade. Wall assemblies for hidden rooms should include mass-loaded vinyl, double drywall with damping compound, or resilient channel systems to match or exceed the acoustic performance of the surrounding construction. The goal is not to create a recording studio. It is to create a room that does not announce its presence through sound transmission.

The door leaf itself must be acoustically rated. A solid-core door with perimeter gasketing will perform dramatically better than a hollow-core or paneled door. The gasketing must be concealed within the jamb so that it compresses when the door closes without being visible from the outside. This is another reason the reveal matters: a tight, consistent reveal allows the gasket to seat fully without visible compression marks on the surrounding finish.

Thermal isolation matters for rooms housing wine collections, art, or sensitive electronics. The concealed space may need its own HVAC zone, or at minimum insulated walls and a sealed door perimeter. A hidden wine room that shares unconditioned air with the rest of the house will not maintain stable temperature and humidity. A hidden equipment room that overheats will fail. The mechanical engineer needs to know the room's program early enough to design the HVAC accordingly.

Fire Egress and Code Realities Homeowners Rarely Consider

Hidden rooms are legal in most US jurisdictions. They are not exempt from the building code. A concealed door does not relieve the homeowner of the obligation to provide safe, code-compliant spaces. The building department will treat a hidden room as it treats any other room: by its use, not by its door.

Egress is the most common code issue. If the hidden room is a bedroom, a home office, or any space where someone might sleep or spend extended time, it must have a second means of egress. This typically means an operable window meeting minimum size requirements for clear opening, sill height, and net clear area. The concealed door cannot be the only exit. If the release mechanism fails, or if an occupant cannot find it from the inside under stress, the room becomes a trap.

The release mechanism must be operable from the inside without tools or specialized knowledge. This is a safety requirement, not a design suggestion. A magnetic catch released by a specific book on the outside must have a simple mechanical override on the inside: a lever, a push bar, a knob that is obvious and accessible. The building official will check for this.

Fire-rated assemblies may be required depending on the room's use and location. A hidden room adjacent to a garage or utility space may need fire-rated drywall and a self-closing door mechanism. The concealed door must meet the same fire-rating requirements as any other door in that location. This can complicate the hardware selection, since fire-rated concealed hinges and fire-rated pivot systems are a narrower product category.

Permits and inspections are mandatory. A hidden room built without permits creates liability for the homeowner, complicates future home sales, and may not be recognized as legal living space by an appraiser or a buyer's inspector. The permit drawings must show the room, its egress, its ventilation, and its door. The building department does not need to know the door is concealed. It does need to know the door meets code.

What Separates Convincing Concealment from an Obvious One

Convincing concealment is about context, not camouflage. A bookcase door in a room with no other built-in bookcases is inherently suspicious. It reads as a door because it is the only vertical element of its kind in the space. A panel door within a wall of continuous millwork disappears because it belongs to the visual language of the room.

The eye detects pattern breaks. If the surrounding wall has a repeating rhythm of panels, shelves, or moldings, the door must maintain that rhythm exactly. The panel widths, the stile dimensions, the reveal spacing: every measurement must match. A door panel that is half an inch narrower than its neighbors to accommodate the hinge will read as a door. The millworker must design the entire wall so that the door leaf occupies a natural module within the pattern.

Hardware discipline matters. No visible pulls. No visible hinges. No visible locks. The release must be integrated into the design language of the room, not hidden in a way that feels contrived. A fake book on a shelf of real books works. A fake book on a shelf with no other books does not. A pressure point behind a light sconce works if the sconce is one of several. It fails if it is the only sconce in the room.

The best concealment is boring. The room looks entirely ordinary, even unremarkable, until the moment the door opens. There is nothing to notice because there is nothing out of place. The drama is in the reveal, not in the door's appearance. A hidden room that requires explanation is a failed design. If guests notice the door and ask about it, the concealment has already failed, regardless of how clever the mechanism is.

The Design Process: From Client Conversation to Final Reveal

The process begins with the client's program. What is the room for? Who will use it? How often? What should the experience of entering feel like: a quiet slide, a solid push, a slow swing into a lit volume? These answers drive every subsequent decision about hardware, millwork, lighting, and acoustics.

The architect and millworker must collaborate from schematic design. The door is not an accessory to the room. It is a defining element of it. The design must accommodate the door's structural and mechanical requirements from the beginning. This means the millworker is at the table during design development, not brought in after the construction documents are complete.

Prototyping and mock-ups are essential for flush doors and bookcase doors. A full-scale mock-up of the reveal and hardware allows the team to test tolerances, finish, and operation before installation. The mock-up should be built in the actual lighting conditions, with the actual finish materials, and operated by the people who will use the room. A reveal that looks perfect in the shop under fluorescent light may fail in the home under recessed downlights.

The installation sequence matters. The door and surrounding millwork should be installed together, by the same crew, in a single coordinated effort. This is not a task to divide among trades on separate schedules. The framer sets the rough opening. The millworker installs the jamb, the door leaf, and the surrounding panels as one package. The painter finishes the assembly as a single surface. Any break in this sequence introduces variation.

The final reveal, the moment the client sees the completed room for the first time, is the measure of success. If the door is invisible until it opens, the design has achieved its purpose. The client's reaction is not surprise at the mechanism. It is the quiet recognition that the space was always there, waiting, and no one knew.

Hidden Room Design as Part of a Larger Vault Strategy

A hidden room is often one element of a broader security and privacy strategy. It provides discreet access. A dedicated vault provides certified protection. The two are complementary, not redundant. The hidden room conceals the existence of the assets. The vault protects them if the concealment is breached.

The design language of the hidden room should echo the vault's materiality and craft. The same millwork details, the same hardware finishes, the same lighting approach create a cohesive narrative across the home's secure spaces. A client who commissions both should experience them as a single architectural idea expressed in two registers: one visible, one concealed.

Integration with home automation allows the hidden room and vault to share access control, monitoring, and environmental management. A single system can track who entered, when, and under what conditions. The mechanical release must always function independently. Automation adds convenience. It cannot be the only way out.

For clients considering a custom home vault, the hidden room is a natural complement. The vault protects the assets. The hidden room protects the knowledge of where they are. Together, they form a layered strategy that addresses both physical security and informational privacy. This approach is explored in greater depth in our article on custom home vault design, which examines how concealed spaces and certified vaults work together as a single architectural program.

The Oasis Approach: Designing Concealed Spaces with Intent

Oasis Luxury Living approaches hidden rooms as architectural commissions, not novelty features. Every concealed space is designed with the same rigor, material quality, and attention to detail as the home's most public rooms. The door that disappears into a wall of paneling receives the same level of specification as the front entry.

Our process begins with listening: understanding the client's life, their collections, their need for privacy, and their vision for how the space should feel when revealed. The program drives the design. The design drives the mechanics. The mechanics drive the construction sequence. Nothing is retrofitted. Nothing is improvised.

Oasis Vault specifies concealed spaces through an established network of specialist millworkers, hardware manufacturers, and structural engineers who understand the tolerances and performance criteria that make concealment convincing. These are partnerships built through years of professional engagement. Access to them means clients receive not just design expertise but preferred pricing, trade-only products, and the full depth of the world's finest luxury hardware and millwork brands. Oasis supplies every category relevant to concealed space construction: pivot and concealed hinge systems, bookcase and panel doors, release mechanisms, acoustic isolation assemblies, and integrated millwork packages.

The result is a space that serves its function flawlessly and reveals itself with cinematic restraint. A moment of quiet drama that belongs entirely to the homeowner. No one else needs to know it exists.
